WAVLINK USB C DisplayLink (DL7400) Premium Docking Station, 2xHDMI and 2xDisplayPort, Dual 8K@60Hz,Quad 4K@60Hz for Windows 10/11 and Mac M1/M2/M3,100W PD Charging to Host, 2.5G Ethernet,USB C, SD4.0

WAVLINK's Premium USB C 10K@60Hz Quad Displays Docking Station-Bring You Endless Possibilities Through a Single USB Port<br> UG75PD1-DH2 is the first blockbuster product released by WAVLINK team, this docking station is a powerful 15 in 1 tool that can expand your work-from-home laptop's capabilities, reduce wire clutter, and leave your chargers behind! With the UG75PD1-DH2, you’re not just adding screens, you’re also getting a whole host of extra ports. Starting with the innovative display array, you can add up to single 10K at 60Hz dual 8K displays at 60Hz or four 4K displays in the configuration of dual HDMI and duan DP to USB4 / Thunderbolt 3/4/5 hosts.<br> <br> Blazing Fast Data Transfer<br> The docking station features five high-speed USB 3.2 ports, including two USB-C and three USB-A, all supporting transfer speeds up to 10Gbps. A bonus feature: one of the USB-C ports offers 30W downstream charging, making it easy to power your mobile devices while working.<br> <br> 2.5X Faster Than Gigabit: <br> This LAN port offers stunning and stable wired network connection to new Type-C/Thunderbolt laptops that are lack of RJ45 network port, backwards compatible with 10/100/1000Mbps.<br> <br> SD Card Reader Slot<br> You can conveniently browse videos or photos instantly on your PCs/laptops and transfer large files in seconds with highest speed up to 312MB/s. (The SD card is not included).<br> <br> 2-In-1 Audio &amp; Mic<br> Connect a microphone, headphones or mini stereo to this audio out &amp; mic in port when accessing audio files or needing to speak, which can make listening, talking or recording a breeze.<br> <br> Security Lock Hole<br> Supports the connection of Kensington lock, which secures the devices and important data from theft to keep your properties/data safe. (Kensington lock is not included).<br> <br> Rotation &amp; Clamshell Mode<br> On Windows, screen rotation and clamshell mode are both available. On Mac, screen rotation and clamshell mode are only available on macOS 12.x above.<br> <br> Better Heat Dissipation<br> Ventilation hollow design on both left and right sides helps to level up heat dissipation for a heavy duty purpose all day. Good to extend the lifespan of the dock.<br> <br> Compatible Systems<br> -Windows 11/10<br> -Mac OS 11.x-13.x or later<br> -Chrome OS<br> -Ubuntu <br> <br> Specification<br> Model：WL-UG75PD1-DH2<br> Color: Silver<br> Material Type: Aluminum<br> DisplayPort(DSC): up to 10K@60Hz/4K@120Hz<br> DispalyPort 2: up to 8K@60Hz/4K@60Hz<br> HDMI 1/2: up to 4K@60Hz<br> 1x Ethernet: up to 2.5 Gbps<br> 3x USB-A 3.2: up to 10Gbps<br> 1x USB-C 3.2: up to 10Gbps<br> 1x USB-C 3.2: up to 10Gbps+PD30W<br> 1x SD4.0: up to 312MBps<br> 1x 3.5mm 4-Pole Audio &amp; Mic Jack<br> 1x USB-C (Host, PD100W)<br> 1x DC IN (20V/8A, 160W)<br> <br> Multiple Display Resolution<br> ①Single Display(Max. Resolution)<br> DP 1(DSC): 10K(10240x2880)@60Hz/4K(3840x2160)@120Hz<br> DP 2: 8K(7680/8192x4320)@60Hz/4K(3840x2160)@60Hz<br> HDMI 1/2: 4K(3840x2160)@60Hz<br> <br> ②Dual Display(Max. Resolution)<br> DP 1+DP 2: 2*8K(7680/8192x4320)@60Hz<br> DP 1+HDMI 1/2: 8K(7680/8192x4320)@60Hz+4K(3840x2160)@60Hz<br> DP 2+HDMI 1/2: 8K(7680/8192x4320)@60Hz+4K(3840x2160)@60Hz<br> <br> ③Triple Display(Max. Resolution)<br> DP 1+DP 2+HDMI 1/2: 1*8K(7680/8192x4320)@60Hz+2*4K(3840x2160)@60Hz<br> DP 1+HDMI1+HDMI2: 1*8K(7680/8192x4320)@60Hz+2*4K(3840x2160)@60Hz<br> DP 2+HDMI1+HDMI2: 1*8K(7680/8192x4320)@60Hz+2*4K(3840x2160)@60Hz<br> <br> ④Quadruple Display(Max. Resolution)<br> DP 1+HDMI 1+DP 2+HDMI 2: 1*4K(3840x2160)@120Hz+3*4K(3840x2160)@60Hz<br> <br> Warm Tips:<br> ☺The dock is self-powered and needs to be connected to the power adapter to work normally.<br> ☺Not recommended for gaming or video clips.<br> ☺This dock works with Thunderbolt 4/5 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.<br> ☺Please confirm that the type-c port of your laptop supports charging, or the docking station's host charging function may not work. <br> ☺Driver required for this product, does not support plug and play. Please follow the instructions to download the latest DisplayLink driver from the official website before use.<br> ☺Does not support HDCP, will not playback encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.<br> <br> USB Host Compatible Devices (Not Full List):<br> To get the better performance,we suggest the CPU and GPU of the laptop should meet the requirement below:<br> CPU: Intel 11th/12th generation CPU or cpu of higher spec.<br> GPU: Iris xe or gpu of higher spec like Discrete graphics card from NVIDIA.<br> <br> Apple: MacBook Pro (Intel and M1/M2/M3) 2024/2023 / 2022 / 2021 / 2020 / 2019 / 2018 / 2017 / 2016, MacBook Air 2022 / 2021 /2020 / 2019 / 2018 and more<br> <br> HP: HP Spectre x2/x360,Elitebook Folio G1,Elitebook 830 G7/840 G6/840 G7/840 G8/845 G7/850 G7/850 G8, ZBook firefly 14 g8 /ZBook 15 G3/ZBook 15 g2/ZBook firefly 15 G7/ZBook 17 g6,Probook 450 G5/6/7,Probook 445 G7,Chromebook 14,envy x360/16-h0003TX/X360 15-ew0012TX, omen 8 pro<br> <br> Lenovo: Lenovo Yoga 720-13IKB/730/900-13ISK/910/920/930/940-14IIL/14c 2022(intel)/pro 14s 2022; 3rd generation Thinkpad Yoga/Thinkpad l13 yoga gen 2 ; Yoga15 Thinkpad Ultrabook Pro; ThinkPad E590/P72/T14 Gen 1/T14s Gen 3(intel)/T14s Gen2 (intel)/T14 Gen2 (intel)/p52s/e590/T470/X1 Carbon (2019 model)/P15v 2022; Flex 14 IML (81XG)/ Flex 5; Legion Y530/15aACH6H/Y7000P 2022/Y9000P 2022; Lenovo C930/ T480s/ X390/ 81N8, nano x1; ideapad pro 14/air 14/air 14 plus, Thinkbook plus 17<br> <br> Dell: Dell XPS 12 2-in-1 9250, XPS 13 2 in 1 9310, XPS 13 (9305,9311,9350,9360,9370,9380), XPS 13 Plus, XPS 15 (7590,9510,9500,9550,9560,9575), XPS 16, XPS 17(9710),Dell Precision 3560/3561/5510/5560/5760/5570/7560/7760, Dell Latitude (7490,7420,7400,E7370,5570,5420,5410,5400,5320,5520,5501,3390,3520),Dell Inspiron 17 7706, Inspiron 13/14/14 plus/16/16 plus, Dell G16<br> <br> Google: Google Slate (2019),Chromebook C340-15,SanDisk Cruise Glide,Razer Blade 2017 (gtx 1060),Pixel book go 2019/2020<br> <br> Microsoft: Surface Book 2/Surface Go&amp;Go 2&amp;Go 3/Surface Laptop 3/Surface Laptop 4/Surface Laptop Studio/Surface Pro 7/Surface Pro 7+/Surface Pro 8<br> <br> ASUS: ASUS Chromebook Flip, ZenBook3, ASUS ZenBook Pro, Asus ZenBook Flip, ASUS Transformer 3 Pro T303UA.<br> <br> Acer: Acer swift 3/swift 7, Acer Chromebook<br> <br> Samsung: Samsung Chromebook Pro, Chromebook Plus, Notebook 9 13", Galaxy Book 12", Galaxy Book 10.6,Galaxy Book 2 Pro 360<br> <br> Huawei: Huawei MateBook X Pro, MateBook X, Huawei MateBook E<br> <br> Package Includes<br> 1 x Universal Quad Display Docking Station<br> 1 x USB-C 100cm Cable <br> 1 x DC20V 8A Power Adapter<br> 1 x AC Power Cable<br> 1 x Cable Holder<br> 1 x Quick Start Guide<br>

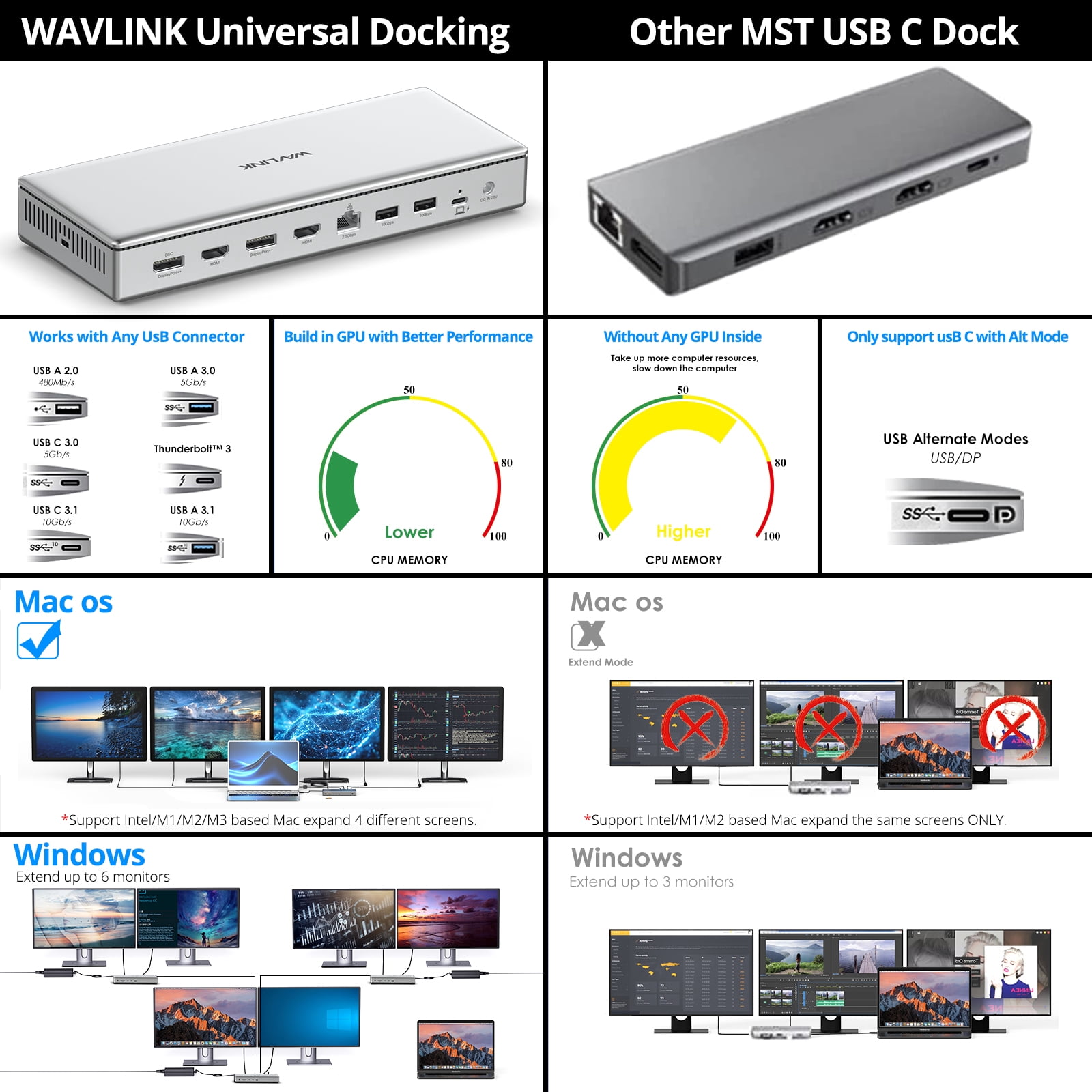

• ‌⭐Break Through the Limitations: WAVLINK USB-C laptop docking station utilizes the latest DisplayLink DL7400 chipset to safely circumvent the display restrictions of Apple's triple display limitation and achieve quadruple display support. Single 10K@60Hz,Dual 8K@60Hz or quad 4K resolution display bring you clear sharp text, bright vivid images, and overall more pixel density.
• ⭐15 In 1 Docking Station: WAVLINK quadruple display docking station is an ultimate accessory for your laptop/PC and features 2xDisplayPort++(1.4) &2xHDMI(2.0) ports, 2.5G Ethernet port, USB C 3.2(10Gbps+PD30W), 2xUSB C 3.2(10Gbps), 3xUSB A 3.2(10Gbps), SD4.0 slot(312MB/s), DC in, 100W PD charging port, 3.5mm Audio & Mic jack. Driver required for this product, pls go to the displaylink website to download the driver.
• ⭐Dual 8K or Quadruple 4K Displays: This displaylink usb c docking station has 2xDP&2xHDMI ports. Single monitor in up to 10@60Hz/4K@120Hz, or dual monitors in up to 8K(7680/8192x4320)@60Hz, or quadruple monitors in up to 1*4K(3840x2160)@120Hz+3*4K(3840x2160)@60Hz. Bring you ultra-high definition and high refresh rate images.
• ⭐Efficient Power Delivery: Comes with a 160W power adapter, this usb c dock can charge your laptop up to 100W via the USB-C connector, for downstream charging, another USB-C port on the front (PD 30W+10Gbps), provides up to 30W charging for your mobile phone/pad or any USB-C devices which support USB PD charging, giving you a blazing-fast charging speed experience. Note: The USB-C port of your devices must support PD charging.

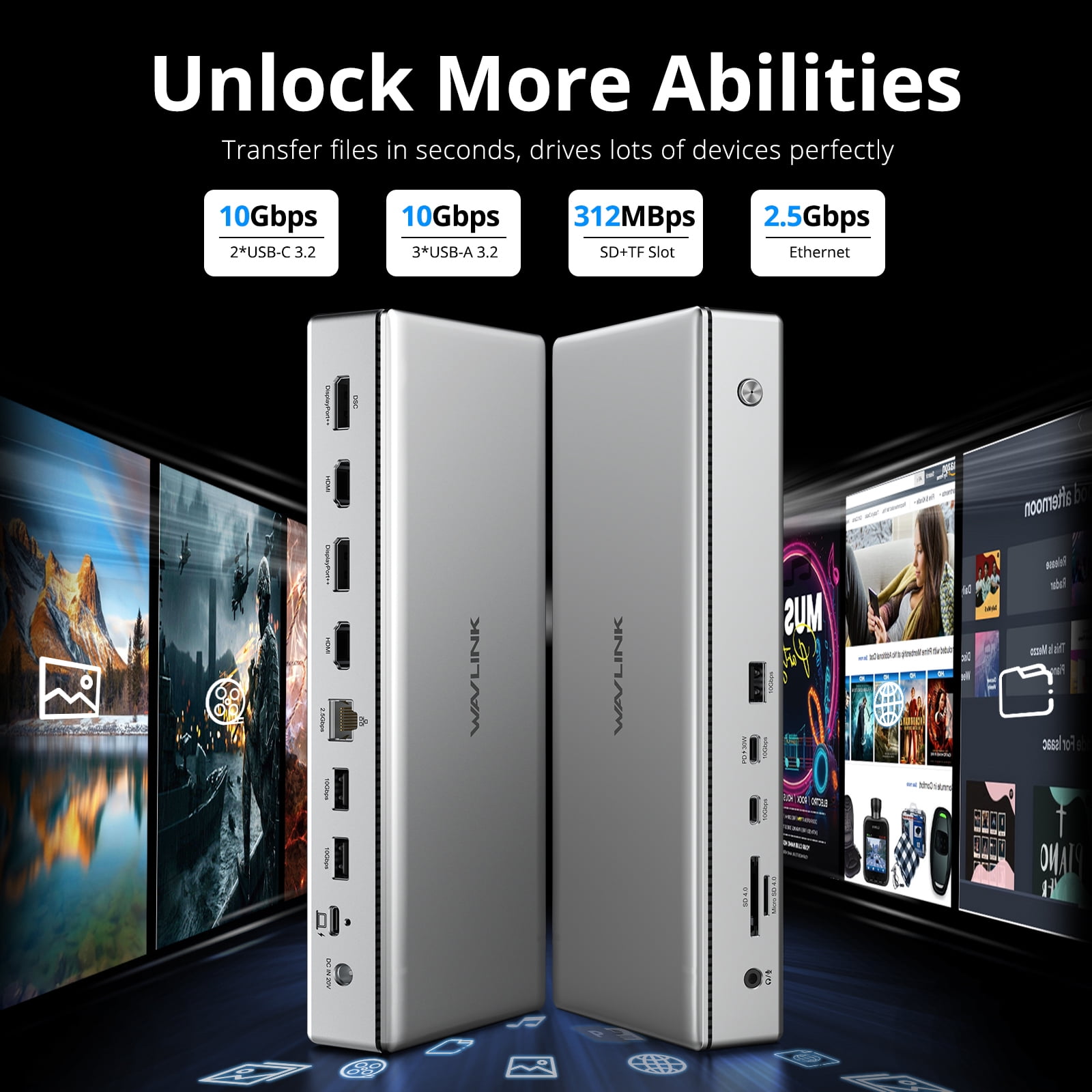

• ⭐Blazing Fast USB-C/USB-A Ports: With 5 USB-A/C 3.2 ports you can transfer large files in seconds, as it goes in 10Gbps. Furthermore, you can connect keyboard and mouse to the USB ports to save power. The SD card slot (speed up to 312 MBps) for USB-A/Type-C/Thunderbolt 4/Thunderbolt 5 devices to access files from SD card, quickly view your photos or videos. Double the performance of a traditional Gigabit Ethernet port with 2.5G Ethernet port for faster file transfers, smoother video conferencing, and seamless streaming.
• ⭐Durable & Sleek Design: Housed in aluminum, this docking station is both stylish and durable, designed to fit seamlessly into any professional or gaming setup.
